How Replica Metallography Evaluates the Condition of Aging Plant Equipment

Imagine an aging chemical plant which has been in operation for about 25 to 30 years. There do not seem to be any issues with the boiler headers. All the piping has proper support. The wall thickness measurements are all within acceptable limits.

However, metals don't fail just due to corrosion and thinning. Metals can change their inner structure due to decades of exposure to heat and pressure. These changes cannot be seen by the naked eye, but once they manifest themselves as leaks or cracks, it means that serious damage has been done.

This is where Replica Metallography helps. It lets engineers look at the internal microstructure of a component while it stays in place, with no cutting and no long shutdown. Here is how it works and why it matters for aging plants.

What Is Replica Metallography?

Replica Metallography is a non-destructive examination (NDE) technique that captures the microstructure of a metal surface on a thin plastic film. That film can then be studied under a microscope.

Normally, checking a metal's microstructure means cutting out a sample and taking it to a lab. That is rarely possible on a pressure vessel, a steam pipe, or a furnace tube. Replica Metallography solves the problem by bringing the lab to the equipment. A small area is prepared on site, its structure is copied onto a film, and the film is examined later.

Because the component is never damaged or removed, the method suits critical assets that need to keep running safely.

Why Aging Plant Equipment Needs a Closer Look

Most process plants were designed for a certain service life. Many now operate well past it, often at high temperatures and under constant stress. Over time, materials go through slow changes such as:

• Creep, where metal slowly deforms and develops tiny voids under long-term heat and load

• Overheating, which can alter the grain structure and weaken the metal

• Carbide spheroidization, where the hardening particles in steel break down and lose their strength

• Graphitization, which can affect some carbon and low-alloy steels

• Sensitization and embrittlement, especially in certain stainless steels

None of these changes can be found with a visual check. Even standard thickness measurements can miss them entirely. A tube can be full thickness and still be close to the end of its useful life.

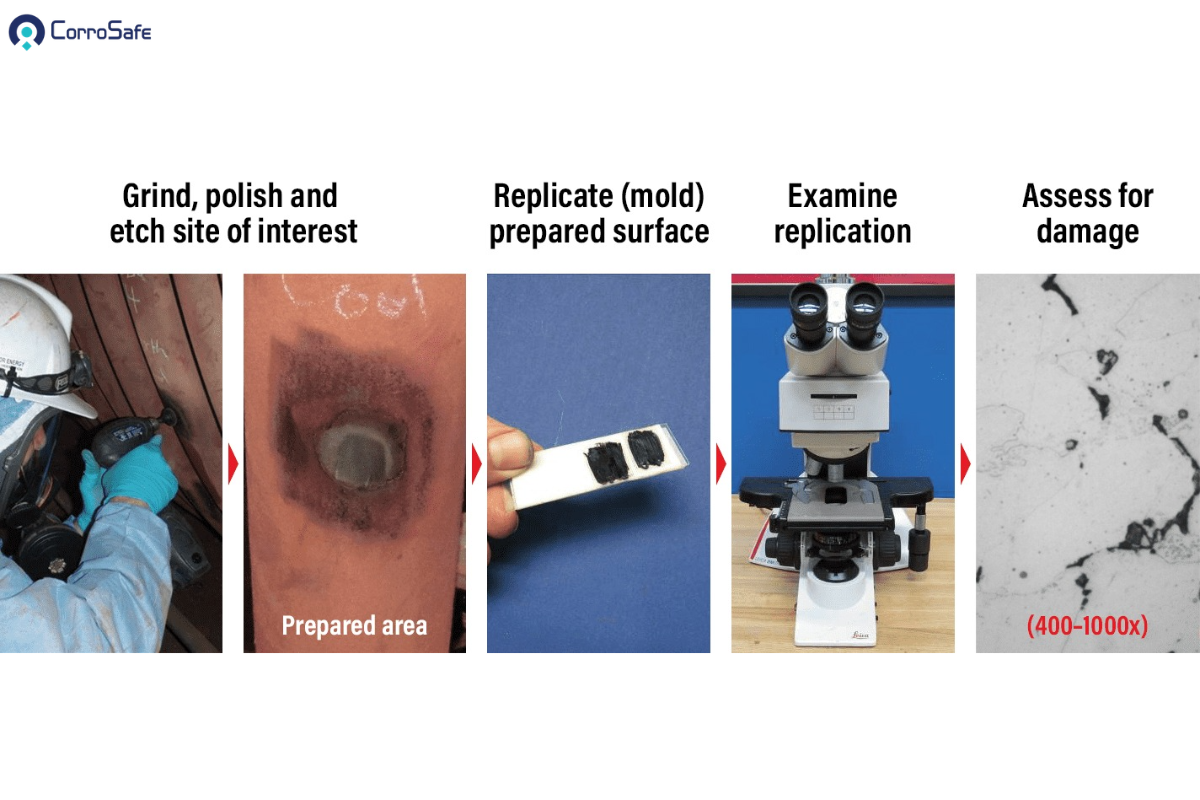

How Metallurgical Replica Testing Works, Step by Step

This procedure seems easy in theory, but requires much expertise. The quality of each stage determines the practical use of the result.

1. Selection of the Location

The engineers select those locations where there is a high probability of occurrence of defects such as welds, heat-affected zones, bends, and zones of the highest temperature. Selection of the proper location is crucially important, since the replica reflects the very small area being studied.

2. Surface Preparation

The area should be ground and polished until its complete reflection. In addition, the surface should be cleaned of oxide scale, paint and damages. Otherwise, the replica will reflect the wrong image.

3. Etching

The etching of the prepared area is conducted using a weak chemical solution, in order to reveal grain boundaries, carbides, etc.

4. Application of the Replica Film

A softened film of plastic material such as cellulose acetate is pressed on the etched surface. With drying, it reflects the microstructure.

5. Replica Removing and Mounting

The film should be removed carefully, mounted on a glass slide and usually coated to improve visibility.

6. Microscope Examination

The replica is examined by a metallurgist under the optical or scanning electron microscope. The analysis includes grain structure, carbides, voids, and cracks.

Field practice generally follows established standards such as ASTM E1351, which covers the production and evaluation of field metallographic replicas.

What Replica Metallurgy Inspection Can Reveal

A good Replica Metallurgy Inspection gives you a clear picture of what is happening inside the metal. Here are some of the most common findings.

• Creep Damage

Creep is the major problem for high-temperature equipment. This is initiated by small and separate voids forming along the grain boundaries. Over a period of time, these voids align themselves, form clusters, and create micro-cracks that later develop into cracks.

Metallurgists commonly use the concept of stages for this process, using various approaches such as the Neubauer classification. The earlier damage detection takes place in terms of void formation; the more time the power plant will have. The detection of the crack stage usually implies urgent measures.

• Overheating and Microstructural Change

If a component has run hotter than intended, even for short periods, its structure can change. Replicas can show altered grain size, abnormal carbide patterns, or signs of localized overheating, which often point to a process or operational problem that needs fixing.

• Spheroidization and Graphitization

In many steels, strength comes from fine carbide particles. After long exposure to heat, those particles can coarse and break down. This reduces strength and creep resistance. In some materials, graphite can form instead, which weakens the steel further. Both are easy to spot under the microscope but hard to detect any other way.

• Weld and Heat-Affected Zone Problems

Welds are often the weakest link in aging equipment. Replicas taken across a weld and its heat-affected zone can show cracking, voids, or structural changes that other methods might miss.

• Other Service-Related Damage

Depending on the material and service, replicas can also show signs of decarburization, hydrogen-related damage, sigma phase formation in stainless steels, and intergranular attack.

Replica Metallography for Remaining Life Assessment

One of the most valuable uses of this technique is Replica Metallography for Remaining Life Assessment.

Every plant owner eventually asks, "How much longer can this equipment safely run?" A remaining life assessment tries to answer that with evidence instead of guesswork.

Replica results give a direct look at the current condition of the material. If the replica shows a healthy, stable structure, the component may be able to continue operating with confidence. If it shows advanced creep voids or micro-cracks, the plant can shorten the inspection interval, reduce operating conditions, or plan a repair or replacement.

Metallography is rarely used alone for this purpose. A proper remaining life assessment usually combines replica results with:

• Operating history (temperature, pressure, and duration)

• Hardness testing

• Ultrasonic thickness and flaw detection

• Magnetic particle or dye penetrant testing

• Stress and design calculations

Together, these give a much more reliable answer than any single method.

Key Benefits for Process Plants

Replica Metallography Testing offers several practical advantages:

• No need to remove the component: The equipment stays in place, and testing often fits within a planned shutdown.

• Early warning: Damage can be found before it becomes a leak, rupture, or unplanned outage.

• Better maintenance planning: Repairs and replacements can be scheduled instead of forced.

• Improved safety: Failures in high-temperature, high-pressure equipment can be dangerous. Finding problems early protects people and assets.

• Cost savings: Replacing a component that is still healthy is expensive. Replica results can show when it is safe to keep it running.

Limitations to Keep in Mind

No inspection method is perfect, and it helps to be realistic about what replicas can and cannot do.

First, a replica only shows the surface of a small area. It does not show what is happening deep inside the wall, so the location of the test matters a great deal.

Second, the quality of the surface preparation directly affects the quality of the result. A poorly polished surface can hide damage or create false readings.

Third, interpreting the microstructure takes experience. Reading a replica is not something that can be rushed or handed to someone without metallurgical training.

For these reasons, a good inspection plan uses replicas alongside other NDE techniques. Working with corrosion consultancy services that understand both metallurgy and plant operation can make this planning much easier.

Practical Tips Before You Schedule Testing

If you are thinking about replica testing for your plant, a few simple steps can improve your results:

• Review the equipment history. Know the design temperature, actual operating conditions, past repairs, and any upset events.

• Prioritize critical items. Focus first on components that run hot, carry high stress, or would cause major problems if they failed.

• Plan access early. Insulation removal and scaffolding take time, so build them into the shutdown schedule.

• Use qualified people. The person preparing the surface and the person interpreting the replica should both be experienced.

• Keep records. Store replica results and compare them over time. Trends often tell you more than a single reading.

Conclusion

Aging equipment doesn't have to be a gamble. Replica Metallography gives plant owners a clear, evidence-based look at what is going on inside their metal, without cutting, removing, or long downtime. It can reveal creep damage, overheating, and structural changes early enough to act, and it plays a key role in remaining life assessment, maintenance planning, and overall asset integrity.

If your plant has equipment that has been running for decades under heat and stress, now is a good time to take a closer look. CorroSafe Consultant offers professional support in metallurgical inspection, damage assessment, and corrosion consultancy services to help process plants operate safely and reliably. Reach out to the team to discuss your equipment, plan a Replica Metallography inspection, and make confident decisions about the future of your assets.
