How to Detect and Prevent Caustic Cracking in Pressure Vessels and Piping

Picture a caustic soda line that has run quietly for years. The walls look fine and the thickness readings are healthy. Then one morning, a small weep shows up near a weld. When the insulation comes off, the operators find a web of fine cracks that nobody saw coming.

This is how caustic cracking often announces itself. There is little visible wall loss, so it can sit in your equipment for a long time before it causes trouble. In this post, we'll look at what causes it, where it hides, how to find it, and what you can do to stop it.

What Is Caustic Cracking?

Caustic cracking is a form of stress corrosion cracking (SCC). It happens when steel is exposed to a strong alkaline solution, most commonly sodium hydroxide (caustic soda), while under tensile stress.

Neither the caustic nor the stress is enough on its own. Together, over time, they can open up cracks that grow through the metal wall. You may also hear it called caustic embrittlement, especially in boiler circles.

Caustic cracking corrosion is different from the general thinning you normally think of. The metal doesn't waste away evenly. Instead, tiny cracks run along the grain boundaries and spread quietly. By the time you see a leak, the damage may already be serious.

The Three Ingredients Behind the Problem

Like most stress corrosion cracking, caustic cracking needs three things to line up:

• A susceptible material. Carbon steel and low-alloy steels are the usual victims.

• A caustic environment. This can be strongly caustic, or a weak solution that becomes concentrated somewhere it shouldn't.

• Tensile stress. This comes from operating pressure, but far more often from residual stress left behind by welding, bending, or forming.

Take away any one of the three and the cracking stops. That is the key idea behind every prevention method we'll discuss.

Where Caustic Cracking Likes to Hide

Some spots in a plant are far more likely to crack than others. Here are the usual suspects.

Weld areas. Welding leaves high residual stress in and around the weld and heat-affected zone. If that stress is never relieved, it stays there, ready to help a crack start.

Steam-traced and heat-traced lines. This is a big one. If steam tracing runs hot against the pipe wall, it can create a local hot spot. A small leak from the tracing can also let caustic evaporate and concentrate on the metal surface.

Steam-out operations. Steaming out a caustic vessel or line without proper preparation can spike the metal temperature suddenly. It can also leave residual caustic behind at high concentration.

Dead legs and low flow areas. Caustic can sit, heat up, and slowly concentrate in stagnant sections.

Heat exchangers and reboilers. Where caustic is heated, hot tube surfaces and crevices can push local concentration well above the bulk value.

Boilers. Caustic can build up under deposits or in tight gaps, where boiling concentrates it. Boilers are where caustic embrittlement was first understood, and it's still a live concern in some systems.

Storage tanks and their nozzles. Weld seams, repair patches, and nozzle connections all carry stress and are worth a close look.

Caustic Cracking in Carbon Steel: Why Temperature and Concentration Matter

Caustic cracking in carbon steel doesn't need extreme conditions. This surprises many people.

As a rough rule of thumb, carbon steel starts to become vulnerable in caustic service once temperatures go above about 50°C (120°F). The risk climbs as the temperature and the caustic concentration go up. Industry guidance, such as API 571 and the AMPP (formerly NACE) SP0403 standard, gives charts and recommendations for this. Always check the current version of the standard that applies to your equipment.

This is why carbon steel corrosion in caustic service deserves its own line in your integrity plan. A vessel that handles 10% caustic at ambient temperature may run for decades. The same vessel running warm, with unrelieved welds, can crack.

Stainless steels are not immune either. Austenitic stainless can crack in hot, strong caustic, usually at higher temperatures than carbon steel. Nickel alloys generally perform much better in these conditions.

What Do the Cracks Look Like?

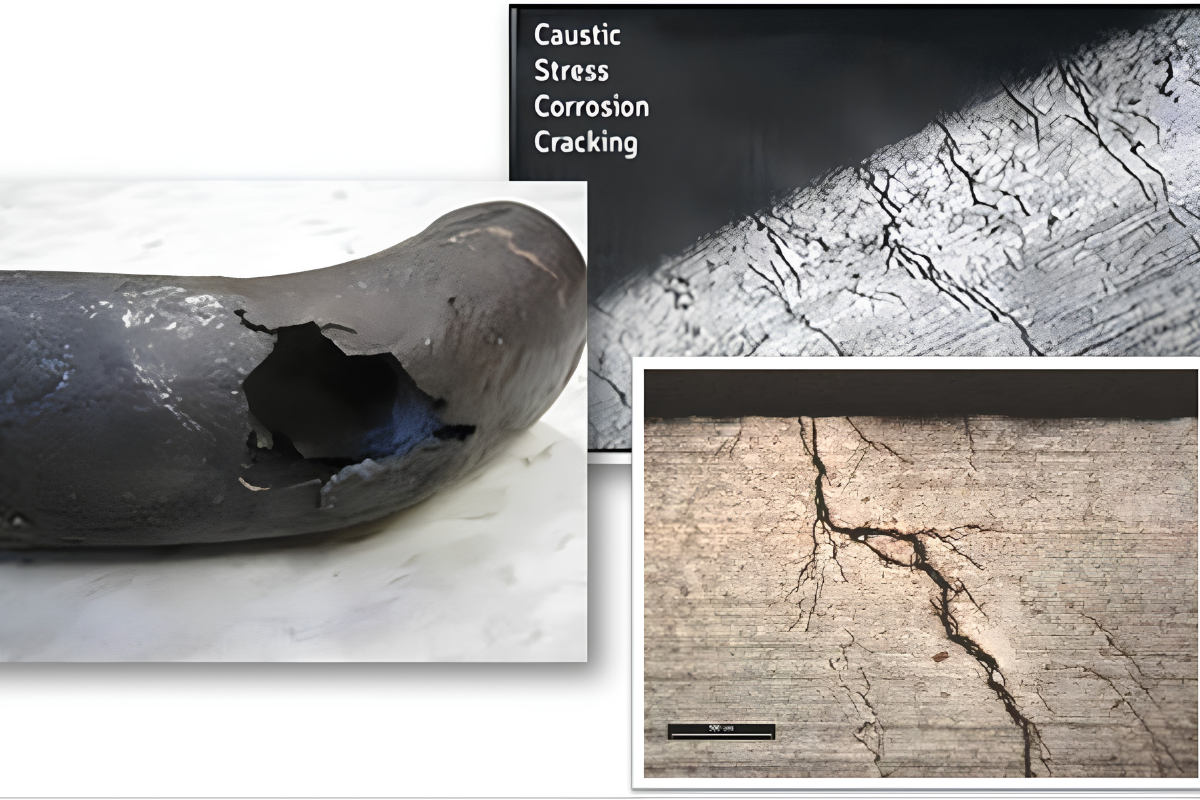

Caustic cracks in carbon steel have a few typical features:

• They are usually fine, branching, and intergranular, meaning they follow the grain boundaries.

• They often appear next to welds, running parallel to the weld in the heat-affected zone.

• They may form a spider-web pattern on the surface.

• They are often filled with dark magnetite (iron oxide).

• There is typically very little general wall loss nearby.

That last point matters. Ultrasonic thickness readings can look perfect while cracks are growing right next to the measurement point.

Caustic Cracking Inspection: How to Find It Early

A good caustic cracking inspection program starts with knowing where to look. Focus on carbon steel equipment in caustic service, especially welds, repairs, and anything that sees heat from tracing or steam-out.

Here are the methods most commonly used:

Visual examination. Start here. Look for staining, weeping, rust marks, and white caustic deposits around welds, tracing points, and nozzles.

Wet fluorescent magnetic particle testing (WFMT). This is often the go-to method for finding tight, surface-breaking cracks in carbon steel. It is sensitive and works well on weld areas.

Penetrant testing (PT). It can work, but very tight cracks or cracks packed with oxide can be missed.

Shear wave ultrasonic testing (angle beam UT). Useful for detecting and sizing cracks in and near welds, including cracks that don't break the surface on the side you're inspecting.

Eddy current or ACFM testing. These are handy for quick screening of larger areas, and some can work through thin coatings.

Radiography. This is generally a poor choice. Tight cracks are very hard to see on a film.

A few practical tips:

1. Clean the surface properly. Remove insulation, scale, and any caustic residue. Poor surface prep is one of the top reasons cracks get missed.

2. Inspect from the process side when you can. During shutdowns, internal inspection often gives the clearest picture.

3. Use qualified people. The best method still depends on a technician who knows what caustic cracking looks like.

4. Don't stop at one weld. If you find cracking in one place, check similar welds and similar conditions elsewhere.

How to Prevent Caustic Cracking

Inspection catches problems. Prevention stops them from starting. The good news is that the cause is well understood, so the fixes are practical.

1. Relieve the Stress with PWHT

For carbon steel in caustic service, post-weld heat treatment (PWHT) is the most common and effective defense. It reduces residual stress in welds so there is little tensile stress left to drive a crack.

Don't forget cold-formed bends, repair welds, and attachment welds. These are often overlooked, and they are exactly where cracks tend to start.

2. Choose the Right Material

Where conditions are too severe for PWHT carbon steel, consider upgrading. Options include nickel alloys, nickel-clad steel, or suitable linings. It costs more up front, but it can cost far less than repeated repairs and unplanned shutdowns.

3. Control Temperature

Keep caustic temperatures as low as your process allows. Watch for local hot spots, especially around steam tracing and heaters. Use temperature limits and monitoring where you can.

4. Manage Steam Tracing and Steam-Out

• Use lower-temperature heating, such as controlled electric tracing or low-pressure steam.

• Avoid direct contact between hot tracing and the pipe wall where possible.

• Fix tracing leaks quickly, since they can concentrate caustic on the surface.

• Avoid steaming out caustic equipment unless it has been stress relieved and the procedure has been reviewed. Flushing with water first is often a safer route.

5. Watch Concentration

Make sure your process doesn't allow caustic to become more concentrated than intended. Look at injection points, mixing zones, and any place where evaporation or boiling can take place.

6. Design Out the Trouble Spots

Reduce dead legs, avoid crevices, and design so that flow keeps caustic moving. Good design removes places for concentration to build up.

Common Mistakes to Avoid

Even experienced teams slip up on these:

• Assuming low-concentration caustic is always safe.

• Relying only on thickness monitoring, which won't find cracks.

• Skipping PWHT on small repairs "just this once."

• Ignoring the effect of tracing or steam-out on the pipe wall.

• Using the wrong inspection method, or inspecting an unclean surface.

A Simple Checklist to Get Started

If you want somewhere to begin, try this:

1. List all equipment and piping in caustic service.

2. Note the operating temperature and concentration for each.

3. Check whether carbon steel welds have been stress relieved.

4. Flag any steam tracing, heaters, or steam-out practices.

5. Plan targeted NDT on the highest-risk welds.

6. Record findings and review them every turnaround.

Final Thoughts

Caustic cracking is quiet, and it usually builds slowly, but it is also predictable. If you know where caustic, stress, and temperature meet in your plant, you can protect those areas before a small crack turns into a leak, a fire risk, or a costly shutdown.
