How Fractography Helps Identify Corrosion-Related Failures in Industrial Components

Highly productive chemical processing facility running at full steam. There are systems under pressure, there is fluid flow, and there is productivity. Then suddenly, without any notice, one of the pressure vessels explodes or the high-pressure pipeline splits open and starts leaking. Production stops abruptly, safety measures go into effect, and the financial damages begin to accrue quickly.

Fractography is here to help understand what happened in such an unfortunate situation. With the help of fractography analysis, one can reveal the exact mechanism behind the failure. In this complete guide, you will learn about the use of fractography analysis to find out why corrosion failures occur.

What is Fractography? The Forensics of Metals

At its core, fractography is the detailed study of the fracture surfaces of materials. You can think of it as forensic science for metals and industrial components. Just as a detective examines a crime scene for clues left behind, a materials engineer examines a broken piece of metal to understand the story of its destruction.

When an industrial component breaks, the newly exposed surface—the fracture face—is never just a random, jagged edge. It is a highly detailed, topographical map. Every ridge, valley, sheer cliff, and microscopic pattern on that surface contains vital information about how the crack started, how fast it propagated, and what ultimately caused the material to give way.

With the help of such a corrosion failure analysis, engineers can study this "map" to decide whether the component was subjected to a sudden overload of mechanical stress, constant physical degradation, or gradual chemical corrosion. The process of fractography removes all uncertainty from the maintenance procedure. In place of simply replacing the burst pipe with another like it and crossing one's fingers, owners of industrial plants will be able to understand and fix the problem.

The Deadly Duo: Harsh Environments and Mechanical Stress

In the industrial world, equipment is constantly pushed to the absolute limit. Components face a relentless combination of high internal pressures, fluctuating operational temperatures, and highly aggressive chemical flows.

When a material is exposed to a corrosive environment, its structural integrity is naturally compromised over time. However, when you add mechanical stress to that equation—whether from the internal pressure of a fluid, the physical weight of the structure, or the rhythmic vibrations from nearby pumps and compressors—the situation becomes exponentially more dangerous.

This dangerous cocktail results in intricate failures in terms of corrosion, which are notoriously hard to diagnose using simple methods of visual inspection or preventive maintenance. The surface of a stainless steel valve may look pristine and flawless, while under the surface, a maze of cracks may be slowly but surely working their way through the metal structure of the valve from within. When the component eventually gives in to the pressure, the resulting downtime may prove to be catastrophic. Crack analysis remains the only method for looking into the past and understanding what happened.

How Fractography Works: The Tools of the Trade

So, how exactly do engineers look at these broken surfaces to find the truth? While a magnifying glass or a low-power optical microscope can provide some valuable initial clues regarding the origin of the break, the real diagnostic magic happens at the microscopic level.

The Scanning Electron Microscope (SEM)

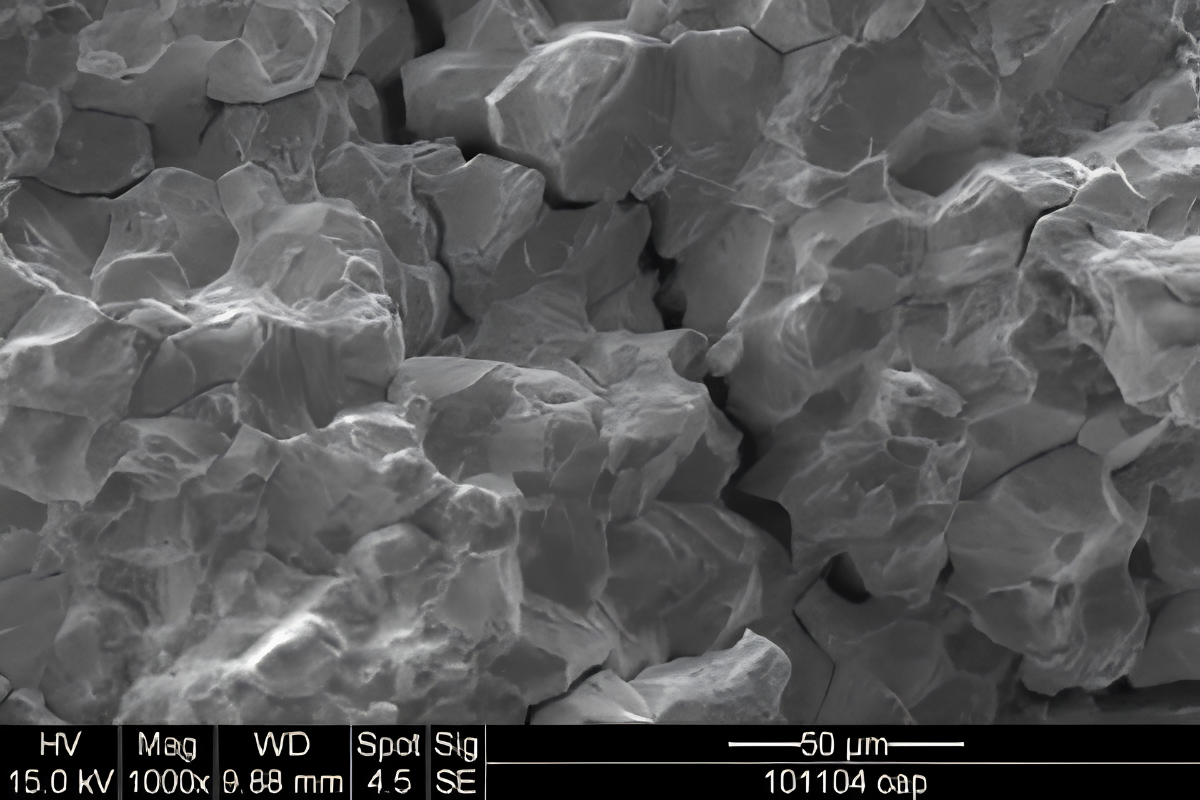

The undisputed workhorse of modern fractography analysis is the Scanning Electron Microscope (SEM). Unlike traditional microscopes that use light and glass lenses, an SEM uses a highly focused beam of electrons to scan the surface of the fractured material in a vacuum chamber.

This technology is incredibly powerful. It allows investigators to zoom in tens of thousands of times closer than the human eye can see, providing exceptionally high-resolution, three-dimensional images of the fracture surface. Through SEM, engineers can spot microscopic corrosion products, identify trace chemical deposits left behind in the crack, and track the specific pathways a crack took through the microscopic grain structure of the metal itself.

Before a piece can be put into the SEM, it must be carefully preserved. If a broken pipe is left out in the rain, secondary rusting will destroy the original fracture surface. Proper failure analysis requires carefully cutting the sample, cleaning it with specialized ultrasonic baths to remove loose debris without damaging the microscopic features, and then meticulously analyzing the exposed faces.

Reading the Cracks: What Fracture Surfaces Tell Us

When an expert looks at an SEM image, they are searching for specific visual patterns that act as "signatures" for different types of failures. By reading these microscopic signs, they can definitively categorize the failure. Here is what they are usually trying to identify:

1. Stress Corrosion Cracking (SCC)

Stress corrosion cracking is one of the most dreaded types of failure mode for heavy industries. Stress corrosion cracking occurs due to the combination of three factors – a susceptible material, high tensile stresses, and a corrosive environment (such as chlorides causing stress corrosion cracking on stainless steel). The difficult thing about SCC is that it often causes failure without significant loss of material. There is no reduction in the pipe size – only cracking.

Under the electron microscope, a stress corrosion cracking failure looks similar to a dried-up river bed or broken safety glass. Typically, the crack runs very aggressively along the grain boundaries or directly through the micro-grains of the metal. Fractography can confirm stress corrosion cracking through the analysis of the characteristic branching pattern and detection of corrosive products such as salts and sulfur left behind on the fracture surface.

2. Corrosion Fatigue

Very few pieces of industrial equipment are completely stationary. They vibrate, rotate, or are subjected to cyclical loading as pressure increases and decreases in the system. In cases where cyclical physical stress occurs in a corrosive environment, the piece of equipment may experience a phenomenon called corrosion fatigue. Corrosive action on the tip of a crack means that it cannot heal itself, and instead grows very rapidly compared to in a non-corrosive environment.

Fatigue produces distinct signs on a fractured surface in the form of striations – very fine parallel lines that resemble water ripples on a pond or rings in a tree trunk. One single ripple indicates one complete stress cycle that pushed the crack further. Through analysis of these lines, engineers are able to determine whether fatigue played a role in the failure and, in some cases, the time elapsed since it began growing.

3. Brittle vs. Ductile Fracture

Determining whether the failure was brittle or ductile is very important from the point of view of plant safety. Ductile failure occurs when a metal elongates and deforms significantly prior to breaking. It may be compared with the process of breaking a taffy by pulling at it. This type of failure may be considered relatively safe since visible deformations serve as a warning sign that indicates impending failure and allows the system to be shut down.

Unlike ductile failure, brittle failure occurs without any warning signs and is catastrophic; there is no elongation or deformation. In the field of chemical industries, some types of severe corrosion may alter the metallic structure and make steel pipes brittle and dangerous. This can be easily determined by fractography, which will reveal a typical feature of such metals as the presence of smooth cleavage surfaces.

Why This Matters: Moving from Investigation to Prevention

It is amazing how one can identify the exact microscopic structure of cracks, but that is just the beginning. The real value of fractography is what follows. An accurate analysis of the failure results in direct recommendations for preventing failures on a factory-wide scale.

After the exact cause of the failure has been determined without any doubts, the problem is not to treat its symptoms anymore, but to cure it. An accurate analysis of cracks will provide exactly such information as to enable implementing the necessary corrective actions:

• Targeted Material Upgrades: With the confirmation of stress corrosion cracking of the heat exchanger by means of fractography, the plant would be aware that installing another heat exchanger made of the same 304 stainless steel would only result in further wastage of funds. Instead, they could confidently move on to installing a superior alloyed material such as duplex stainless steel or titanium.

• Strategic Stress Reduction: In case the SEM test results indicate corrosion fatigue, then engineers know that the cause of failure is mechanical as well as chemical in nature. The design of the piping support structure can be altered in order to reduce vibration in the pump, operating pressures can be changed to improve flow uniformity, or the physical shape of the component can be modified.

• Environmental Control: In such cases, where the metal fits its intended application, yet the operating conditions have gone beyond the limits of acceptability. It may be found through fractography that there are some unknown acidic contaminants in the fracture surface. Here, operators could change the temperature levels of the process, add specific inhibitors to the fluid stream, and also improve the filtration process upstream.

Real-World Value: Failure Analysis in Chemical Industries

The consequences are extremely severe when we talk about failure analysis in chemical industries. Toxic spills, fires in facilities, and even explosions resulting from sudden decompression are very much part of daily life if high-pressure equipment fails. In such a high-stress situation, there is simply no room left for speculation on why a vital valve broke or a reactor exploded.

Through fractography, there is absolutely no need for guessing anymore. The process allows one to see, through scientific facts, exactly what went wrong. Through transforming a tragic accident into a detailed learning experience, a company can take out its vulnerabilities one by one. Not only will this result in a much more secure environment for workers, but also save businesses a fortune from unnecessary shutdowns, production losses, and environmental cleanup.

Conclusion

In the cut-throat environment of industrial production, part failure is an unfortunate reality that cannot be avoided. But this does not mean that these failures need to continue being costly enigmas. Fractography is an important technique that provides maintenance personnel with the ability to uncover the unseen through microscopic analysis of fractures.

Through the use of technology such as scanning electron microscopy, industries will be able to identify the root cause of these problems, whether it is stress corrosion cracking, fatigue, or brittle fracture. This will help them take the appropriate preventive action.

Thorough analysis is an investment in facility safety and long-term profitability. If your facility is struggling with unexplained equipment breakdowns or you want to optimize your asset integrity, professional guidance is essential. By utilizing expert corrosion consultancy services through a trusted partner like CorroSafe Consultant, your team can decode complex industrial failures and implement robust prevention strategies, keeping your plant running safely for years to come.
