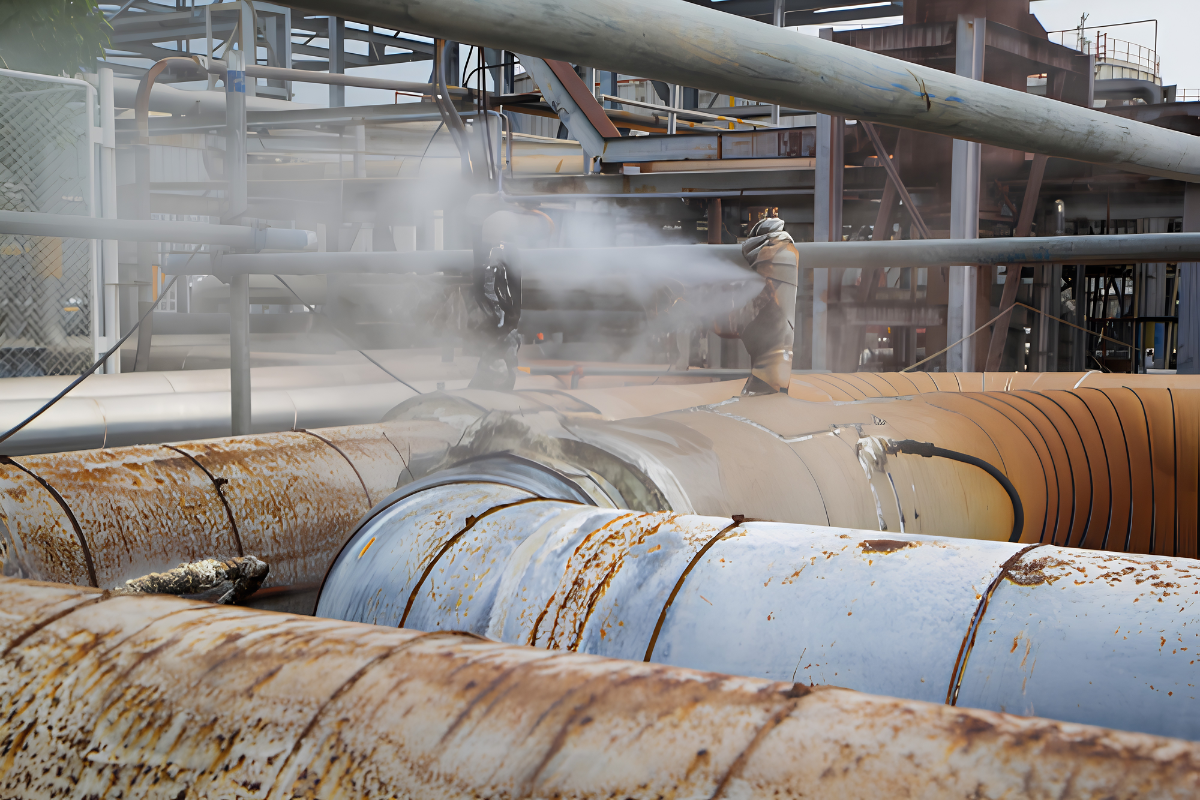

Gas Leaks in Industrial Plants: Detecting the Risk Before Failure

Walk through any chemical or manufacturing plant and you will hear a lot of normal noise: pumps running, compressors humming, steam venting. A gas leak often adds almost nothing to that. A faint hiss, a slight smell, a joint that looks a little stained. Easy to miss, and easy to put off until tomorrow.

But in a process plant, tomorrow is exactly when a small leak can turn into a big problem.

Gas leakage is a serious process-safety and asset-integrity concern. It puts people at risk, wastes product, adds to emissions, and can lead to fire or explosion. Even more important, a leak is rarely the real problem. It is usually a symptom. Something has been going wrong inside the pipe, the joint, or the equipment for a long time, and the leak is just the point where it finally became visible.

This post looks at why gas leaks happen, how to find them early, and what a practical prevention strategy looks like.

Where Gas Leaks Usually Come From

Pipes, vessels, and joints endure tough everyday conditions. The conditions include pressure, heat, vibration, and corrosive chemicals that do not take kindly to metal. Someday, something will break down.

That something would be corrosion. It may attack the inside surface of the pipe where it cannot be seen, or the exterior under the insulation. As the corrosion progresses, the pipe becomes progressively thinner until a thin pipe can no longer withstand the internal pressure. There may also be a problem with the pipe's weld joints, especially if the weld is initially defective or if it has undergone many years of thermal cycles. Flanged joints are also prone to failure, owing to the fact that they require the integrity of bolts and gaskets.

Vibration is another one. Pumps and compressors vibrate all the time and this causes bolts to become loose and fatigue cracks appear in small-bore pipes. If a little bit of mechanical damage was added, such as bumping into the pipe with a forklift or dropping a tool during maintenance, that would add a few more potential sources of leaks.

The thing about leaks that fascinates me is that almost never do leaks happen because of one reason alone. A pipeline exposed to vibration, with a slightly corroded joint and a gasket that’s in poor shape – there you go, a leak waiting to happen

Why Even a Small Leak Deserves Attention

A tiny leak is easy to shrug off. The flow looks small, the gas detectors are quiet, and the maintenance backlog is already long. So it goes on the list for the next shutdown.

The problem is that the constant leakage is always going to run in the background. The flammable gases will end up settling in the low spots and places which are not well ventilated. The toxic gases will end up being a danger to the workers without people knowing about it. Every single one of these leaks represents loss in product since the product is either made or bought by your company.

There is also the collateral damage caused by the leak. The leak will start corroding the support and instruments near it.

Energy comes into play as well. Steam leaks, air leaks, and gas leaks all represent wasted energy that has already been purchased by the facility. This is precisely the reason why an energy conservation consultant is often brought in when conducting a leak survey. Leaks fix themselves with respect to safety and energy savings.

How Gas Leaks Are Detected

No single tool does the whole job. Plants that handle this well use a mix of methods, so that what one misses, another catches. Good gas leakage detection in industrial plants always works as a layered system.

Gas detectors. Fixed detectors sit in risk areas and keep watching for specific gases, raising an alarm when levels cross a set limit. Portable ones are handy during rounds or when checking a suspect spot. They only help if they are placed well and calibrated on time, though. A detector in the wrong location, or one that has drifted out of calibration, can give a dangerous sense of comfort.

Pressure-drop monitoring. If a line or vessel loses pressure and there is no clear reason, take it seriously. Sudden drops are obvious. The slow ones are the sneaky ones, and trending pressure data over weeks is often what exposes them.

Visual inspection. Experienced eyes still catch a lot. Stains around a joint, rust streaks, damaged insulation, frost patches, or bubbles when soap solution is brushed on a flange can all tell you something is wrong. It is low-tech, but it works.

Ultrasonic leak detection. Escaping gas makes a high-frequency sound that humans can't hear. Ultrasonic detectors pick it up even in noisy areas, and they can help trace the source from a distance. That is a big help with high-pressure systems and places that are hard to reach.

Routine inspection. Scheduled checks of piping, flanges, welds, and vessels, backed by thickness readings, build a history of how your equipment is aging. That history is what lets you act before a leak ever appears.

Look Beyond the Leak: Find the Damage Mechanism

This is a cycle that occurs very frequently within plants. There is a leak detected. A clamp is applied, or perhaps the gasket is replaced. The pipe line is placed back into service, and everybody can now feel relieved. But after several months, there is yet another leak at the same location.

What is the reason behind this? No one bothered to find out what caused it in the first place.

Was it due to internal corrosion resulting from materials within the process stream? Was it corrosion under insulation? Stress corrosion cracking? Or perhaps fatigue caused by vibrations? Even worse, could it be that the material of the gasket itself was unsuitable for the gases within?

This is where a corrosion expert earns their keep. A good corrosion consultant studies the failed part, the operating conditions, and the surrounding environment, then works out the actual damage mechanism. Once you know what is really attacking the metal, you can choose the right materials, adjust operating limits, or change the design. Without that step you are just replacing parts on a schedule you did not plan.

A corrosion advisor can also help when failures are happening in more than one place. Often there is a common thread, and spotting it can save a plant a lot of money and a lot of worry.

Building a Reliable Leak-Prevention Strategy

Preventing leaks costs far less than reacting to them. A solid plan usually has a few parts that support each other.

Start with a corrosion assessment

The appropriate corrosion evaluation will give you an idea about where the corrosion may be the most probable, its rate, and which lines/equipment have the higher probability. This includes process chemistry, temperature, flow, and history. The true value of such an approach is the ability to focus on the right things.

Keep an eye on thickness

The frequency of the thickness readings will indicate how fast metal is being consumed. With the help of time, one can predict the remaining life and arrange for the replacement even before failure occurs. The addition of the corrosive monitoring system in the form of probes or coupons adds valuable information on the aggressiveness of the environment.

Look closely at joints and welds

Since flanges, welds, and valve connections fail more than straight pipe does, they deserve extra checks. Look at bolt tension, gasket condition, weld quality, and any sign of cracking. Non-destructive testing can find flaws that are invisible from the outside.

Check material compatibility

Many leaks begin from a basic incompatibility issue. A gasket, seal or pipe material incompatible with the gas, the heat or the contaminants involved would fail much too soon. It becomes especially important in case of any process modifications or changes to the feedstock. An experienced chemical consultant could check these options for incompatibilities.

Protect surfaces with the right coatings

Coatings and linings prevent water and chemical contact with metals. The problem is that inappropriate coatings, even the right type of coating, if improperly applied, may bring more problems than protection. This is the reason many companies consult with corrosion and coatings specialists regarding the selection of the coating system.

Stay on top of plant preventive maintenance

Effective plant maintenance prevents little things from becoming big things. This involves retightening bolts, changing out gaskets at regular intervals, inspecting valve packing, tightening loose mounting supports, and controlling vibration. This is most effective when it is scheduled and documented, rather than being done whenever time is available.

Think of It as Asset Integrity Management

When we take a broader perspective on all of the above, the term asset integrity management comes to mind. Basically, it involves knowing the state of your plant assets, understanding what could go wrong, and taking preventive measures before an accident happens. It brings inspection, monitoring, maintenance, and engineering together into one unified process.

Plants practicing such asset integrity management are less likely to suffer from unexpected outages, higher maintenance costs, and unsafe working environment. After all, the equipment will just last longer when looked after properly.

A Few Practical Tips You Can Start With

You don't need a big project to improve things. These simple habits go a long way:

• Encourage operators to report odd smells, sounds, and stains right away, even if they are not sure.

• Keep a leak log that records the location, date, cause, and repair. Patterns show up faster than you would expect.

• Calibrate gas detectors on time and test alarms regularly.

• Look back at old leaks and check whether the same spots keep coming up.

• Include small-bore connections, flanges, and valves in your inspection plans, not just the main lines.

• Call in an outside specialist when the same failure keeps returning.

None of this is complicated. What matters is doing it consistently.

Conclusion

A gas leak is more than just a leak. It is often an early indication of an integrity problem that has been slowly brewing for months or years. Plants that remain secure and functional are those that catch integrity problems in the earlier stages, question its cause, and address the problem itself rather than its symptom.
